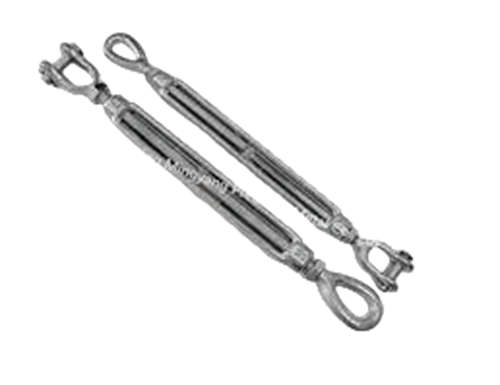

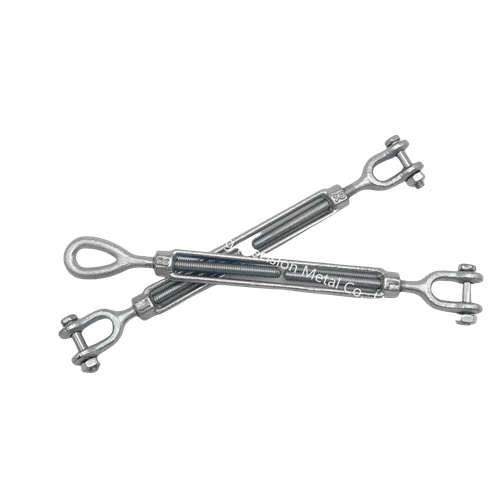

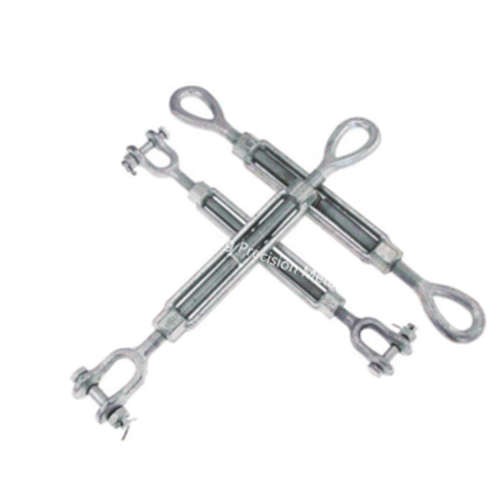

US Type Turnbuckle with Eye Jaw

Product Name:	US Type Turnbuckle with Eye Jaw
Brand Name:	mingyang
Weight (kg):	< 1000kg
Color:	silver
usage:	Boat&Yacht&Ship
Payment:	T/T   Paypal
Materail:	316 stainless steel
Service:	OEM ODM
Surface:	Grinding
Logo:	Accept Customized Logo
Advantage:	High-Quality And Manufacture
Packing:	Inner Bubble Bags +carton / Carton + Wooden Crate

Product Description:

Durable Material: Made of 304 stainless steel material for strength, and durability, waterproof, rust and corrosion resistance. The turnbuckle is removable, easy to install and reuse, and durable.

Wide Application: These are also known as tensioners, turnbuckles, straining screws. Do a good job for the car trailer and pull. It can be used on the car interior and exterior.

OIP 2.jpg

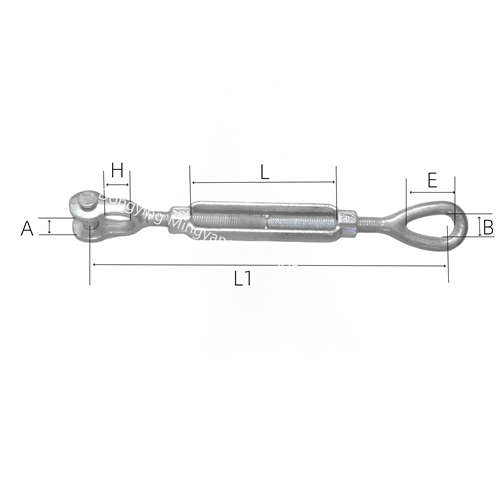

名称/PRODUCT NAME	Size	L in	L1 in	A in	B in	E in	H in
01-01/4-4	1/4〃	4	7.58	0.45	0.32	0.78	0.62
01-05/16-4	5/16〃	4.5	8.38	0.49	0.43	0.94	0.87
01-03/8-6	3/8〃	6	10.7	0.53	0.51	1.12	0.87
01-01/2-6	1-1/2〃	6	11.94	0.67	0.71	1.44	1.06
01-01/2-9	1-1/2〃	9	14.94	0.67	0.71	1.44	1.06
01-01/12-12	1/2〃	12	17.94	0.67	0.71	1.44	1.06
01-05/8-6	5/8〃	6	13.55	0.81	0.87	1.75	1.31
01-05/8-9	5/8〃	9	16.55	0.81	0.87	1.75	1.31
01-05/8-12	5/8〃	12	19.55	0.81	0.87	1.75	1.31
01-03/4-6	3/4〃	6	15	1.02	0.99	2.09	1.5
01-03/4-9	3/4〃	9	18	1.02	0.99	2.09	1.5
01-03/4-12	3/4〃	12	21	1.02	0.99	2.09	1.5
01-07/8-6	7/8〃	6	16.25	1.18	1.21	2.38	1.75
01-07/8-12	7/8〃	12	22.25	1.18	1.21	2.38	1.75
01-01〃-6	01〃	6	18.2	1.3	1.37	3	2.06
01-01〃-12	01〃	12	24.2	1.3	1.37	3	2.06
01-1-1/4-12	1-1/4〃	12	26.48	1.83	1.37	3.56	2.81
