JIS Type Wire Rope Clip

Product Name:	JIS Type Wire Rope Clip
Brand Name:	mingyang
Weight (kg):	< 1000kg
Color:	silver
usage:	Boat&Yacht&Ship
Technology:	Precision casting
Payment:	T/T   Paypal
Materail:	316 stainless steel
Service:	OEM ODM
Surface:	Vibration grinding
Logo:	Accept Customized Logo
Advantage:	High-Quality And Manufacture
Packing:	Inner Bubble Bags +carton / Carton + Wooden Crate

Product Description:

Made of fine 304 stainless steel, durable, corrosion resistance.
Suitable For tighten rope, fit for sunshade, tent rope. Specially good for cloth line tightening.
Insert both ends of the wire needed to be fixed, tighten both nuts till the it is secure enough for application.
Polished surface, compare to most other rope clip it’s beautiful and significantly enhanced corrosion resistance.

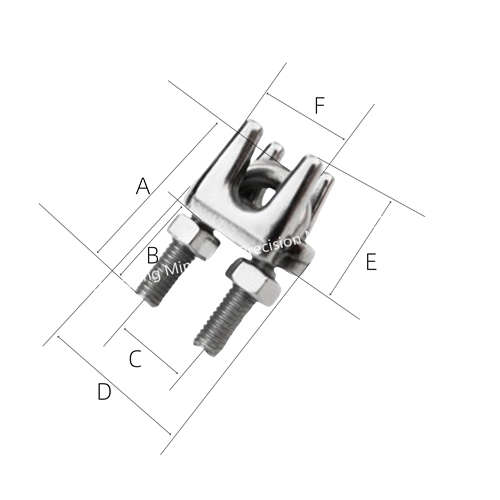

Detail size info please refer to the product image.



ITEM NO	SIZE	A mm	B mm	C mm	D mm	E mm	F mm
2	2	19	11	7.5	14	10	13
3	3	21	11	8	14	10	14
4	4	24	13	9	19	12.5	18
5	5	25	15	13	25	13.5	20
6	6	32	19	14	27	17	20.5
8	8	42	21	18	33	19	26
10	10	51	28	22	45	21	33.5
12	12	61	35	26	51	23	37
16	16	76	44	33	59	33	47
22	22	104	58	44	71	44	61
