Swage Hook Screw Terminal

Product Name:	Swage Hook Screw Terminal
Brand Name:	mingyang
Weight (kg):	< 1000kg
Color:	silver
usage:	Boat&Yacht&Ship
Payment:	T/T   Paypal
Materail:	316 stainless steel
Service:	OEM ODM
Surface:	Grinding
Logo:	Accept Customized Logo
Advantage:	High-Quality And Manufacture
Packing:	Inner Bubble Bags +carton / Carton + Wooden Crate

Product Description:

316 Marine Grade A4 Stainless Steel Closed Body Rigging Screws with a Jaw and Jaw or Fork and Fork, superior rust resistance.

For fastening and binding rope. Simply take out the Clevis Pin from The Rigging Screw Fork by removing the Split Ring.

Perfect equipment for adjusting tension on ropes, cables and lines.

Each end has open jaw with pin and safety wire for easy, secure connections.

Excellent choice for marine, sailing, boating & industrial applications.

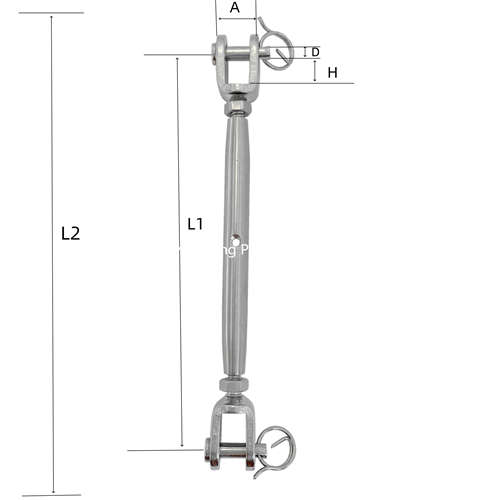

名称/PRODUCT NAME	Thread	A mm	D mm	H mm	L1 mm	L2 mm
4	M4	5.5	4	8	110	170
5	M5	6.5	5	10	130	190
5	M5	7.5	5	9	130	190
6	M6	7.5	6	10	150	220
6	M6	8	6	10	150	220
8	M8	11	8	11	165	240
10	M10	12	9	14	190	280
12	M12	14	12	20	245	360
14	M14	15	12	22	270	390
16	M16	17	16	26	310	450
20	M20	20	19	30	360	510
22	M22	30	22	46.5	472	653
24	M24	30	25	49	520	750
27	M27	34	28	54	595	830
30	M30	40	32	62	660	915
36	M36	44	38	70	730	1000
